TS-AC360
1、承載360KG；
2、采用高強度的本體；
3、帶有機械式防掉落結構，即使機器人側本體意外斷氣，與工具側本體也不會分離；
4、采用鋼球鎖緊方式；
5、內置抓緊、松開、在位檢測裝置；
6、主要用于搬運、沖壓、點膠、涂裝等行業。
7、尤其針對汽車行業焊裝行業，搬運、點焊、電阻焊等。
Features
1、Payload capacity 360kg;
2、High rigid body;
3、Even if the air is accidentally cut off, the robot side and the tool side will not separate by the mechanical anti-drop structure.
4、Steel ball lock system;
5、Built-in grip, release, in-position detection device
6、Mainly used in handling, Stamping, dispensing and other industries
7、Especially for the welding, handling, spot welding industry of the automotive industry, etc.
| 規格 SPECIFICATIONS | |||||||
| 型號Model | 機器人側 Robot side | TS-AC360-R | |||||
| 工具側 Tool side | TS-AC360-T | ||||||
| 承重 Payload capacity | 360kg | ||||||
| 容許力矩 Allowable moment Bending direction(Tx.Ty) | 3580Nm(36500kgf·cm) | ||||||
| 容許轉矩 Allowable moment Torque direction(Tz) | 3750Nm(38200kgf·cm) | ||||||
| 外形尺寸 Housing diameter | φ 240 mm | ||||||
| 連接時厚度 Combined profile | 111 mm | ||||||
| 本體材質 Main body material | 鋁合金 Aluminum alloy | ||||||
| 鎖緊機構材質 Locking mechanism material | 合金鋼 Steel alloy | ||||||
| 位置重置精度 Position repeatability | ±0.02mm | ||||||
| 鎖緊方式 Locking mechanism | 鋼球鎖緊 Locking steel ball | ||||||
| 工作驅動壓力 Air pressure for Working | 0.39~0.75Mpa (4~7kg/cm2） | ||||||
| 本體重量 Weight | 機器人側 Robot side | 9.8 kg | |||||
| 工具側 Tool side | 6.5kg | ||||||

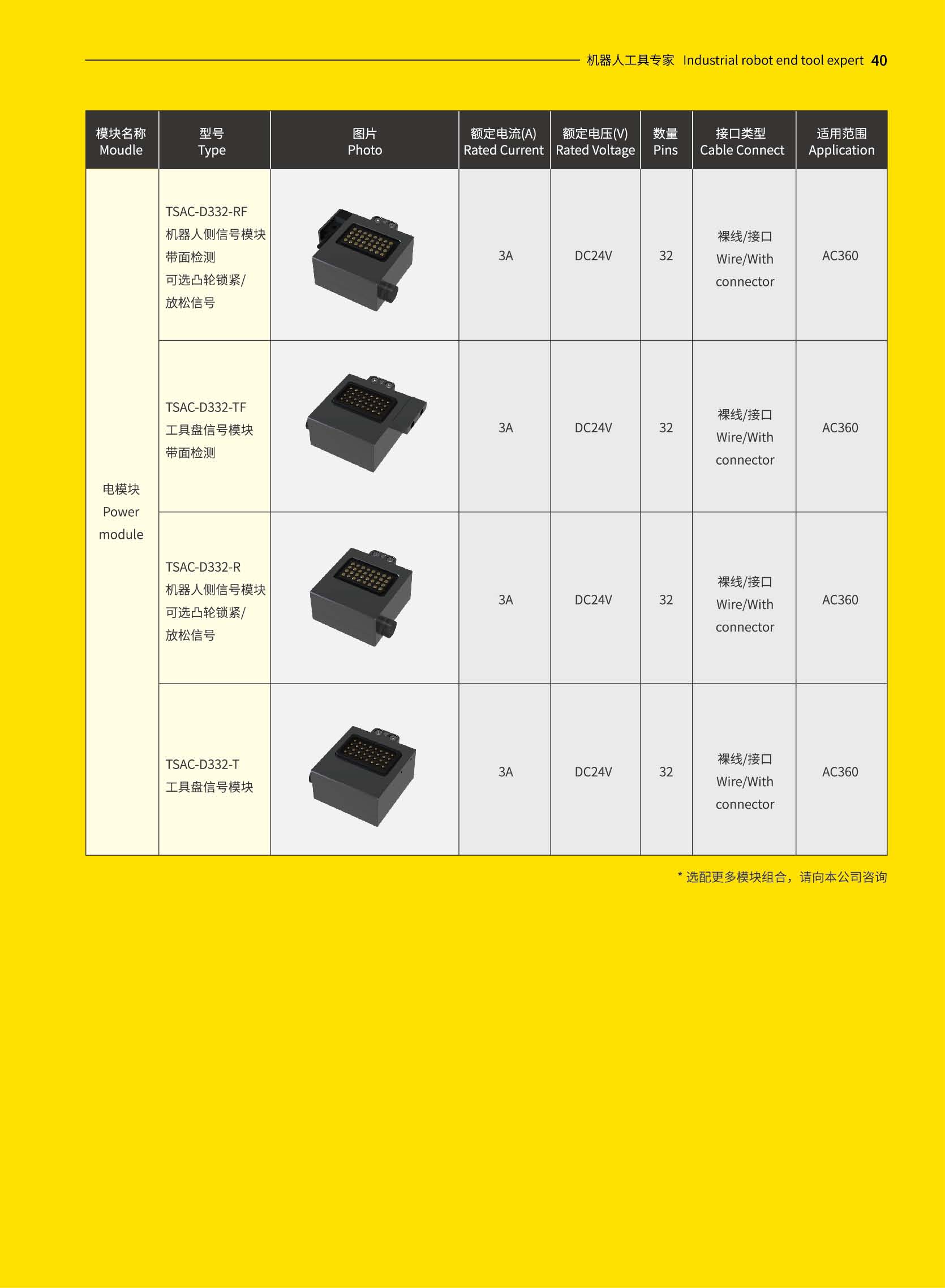

| 電子信號 Electrical signal | 電流值 Current | 3A | |||||
| 芯數 Quantity | 9/16/24/32針 9/16/24/32pins | ||||||

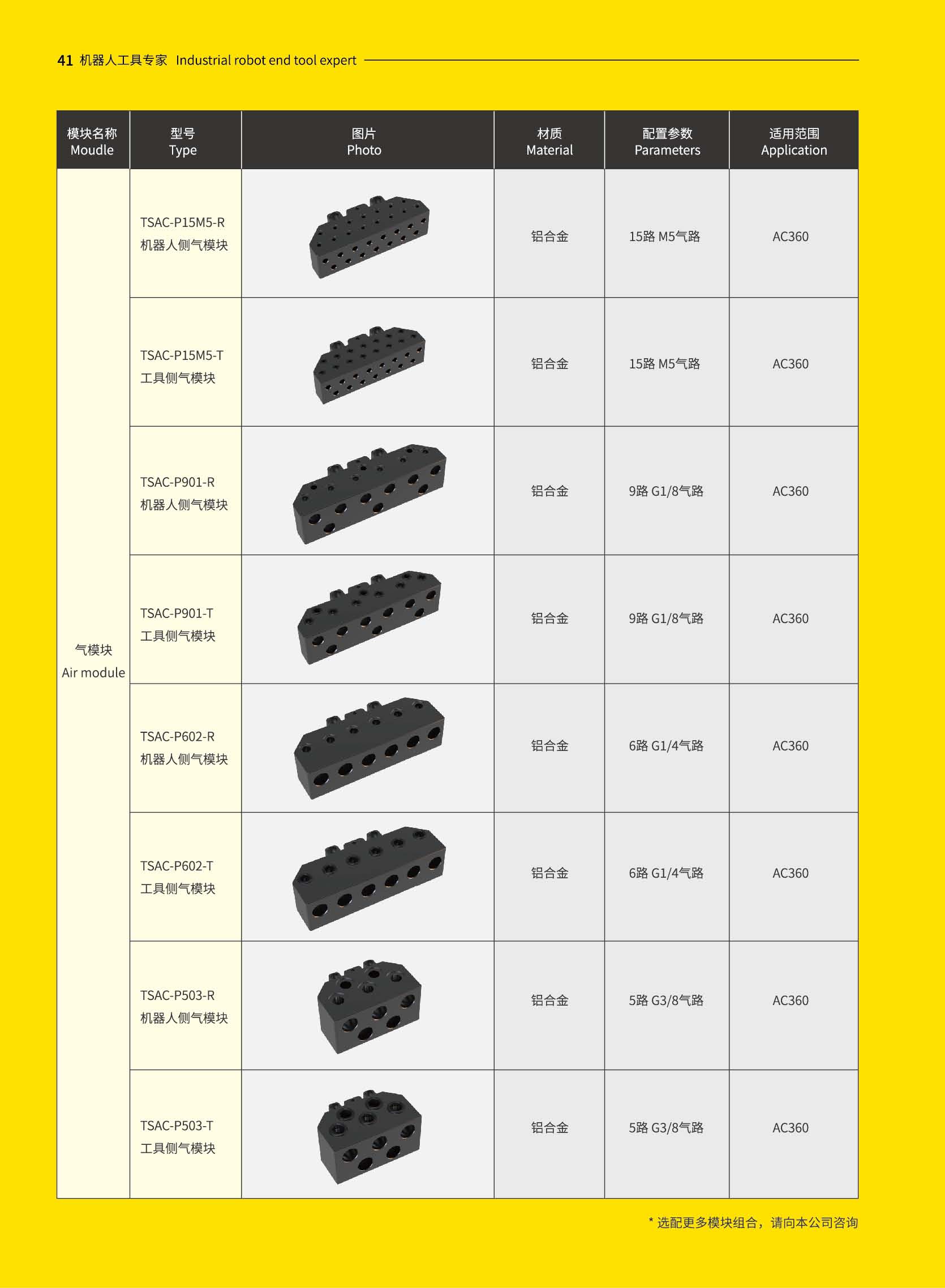

| 空氣出口 Pneumatic Port | 本體出口數 Own quantity | 無 No | |||||
| 有效截面積 Effective cross section | 無 No | ||||||
| 輸送信號 Output signal | 凸輪打開 Chuck | 具備 Have | |||||
| 凸輪收起 Unchuck | 具備 Have | ||||||
| 連接確認 Face signal | 選配 Optional | ||||||
| 環境 Surrounding Condition | 使用溫度 Temprature | 0~58°（無凍結 No freeze） | |||||
| 使用濕度 Humidity | 95% (無結露 No condensation) | ||||||
